Anomaly Detection

Question

In this exercise, you will implement an anomaly detection algorithm to detect anomalous behavior in server computers. The features measure the through put (mb/s) and latency (ms) of response of each server. While your servers were operating, you collected m = 307 examples of how they were behaving,

and thus have an unlabeled dataset {*x (1)*, . . . , x(m)}. You suspect that the vast majority of these examples are “normal” (non-anomalous) examples of the servers operating normally, but there might also be some examples of servers acting anomalously within this dataset.

理论基础

在实际生产中，我们借助于计算机通常会不断得到很多数据反馈，（比如飞机运行时的发动机温度转速、风扇转速、颠簸度等等）正确判断反馈的数据是否正常是整个系统安全平稳运行的基础，因此数据的异常检测极为重要。常见的异常检测其实跟“机器学习”的关联性并不是很大，体现机器学习的地方可能就是通过计算机选取很多个epsilon来找到契合模型的最佳的epsilon。普通的异常检测的本质是对于高斯函数的运用，我们需要对数据进行处理，使其能形成一个近似高斯函数，然后选取最佳的epsilon，在epsilon限定范围以内的点记为异常点。具体epsilon的选取方式为：得分＝2×精确率×召回率/（精确率＋召回率）。得分越大epsilon选取越好。

数据读取处理

import numpy as np
import scipy.io as sio
import matplotlib.pyplot as plt

mat=sio.loadmat('Anomaly Detection.mat')
mat.keys()
dict_keys(['__header__', '__version__', '__globals__', 'X', 'Xval', 'yval'])

X=mat['X']
Xval,yval=mat['Xval'],mat['yval']
X.shape,Xval.shape,yval.shape
((307, 2), (307, 2), (307, 1))

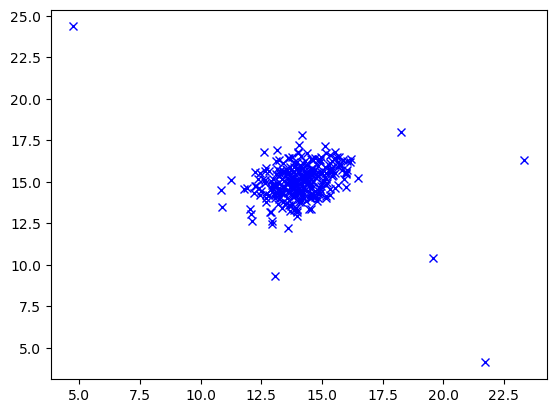

1 2	plt.plot(X[:,0],X[:,1],'bx') plt.show()

png

def estimateGaussian(X,isCovariance):
    means=np.mean(X,axis=0)
    if isCovariance:
        sigma2=(X-means).T@(X-means)/len(X)
    else:
        sigma2=np.var(X,axis=0)
    return means,sigma2

means,sigma2=estimateGaussian(X,isCovariance=True)
sigma2
array([[ 1.83263141, -0.22712233],
       [-0.22712233,  1.70974533]])

means,sigma2=estimateGaussian(X,isCovariance=False)
sigma2
array([1.83263141, 1.70974533])

高斯函数的构建

def gaussian(X,means,sigma2):
    if np.ndim(sigma2)==1:
        sigma2=np.diag(sigma2)
    X=X-means
    n=X.shape[1]

    first=np.power(2*np.pi,-n/2)*(np.linalg.det(sigma2)**(-0.5))
    second=np.diag(X@np.linalg.inv(sigma2)@X.T)
    p=first*np.exp(-0.5*second)
    p=p.reshape(-1,1)

    return p

def plotGaussian(X,means,sigma2):
    x=np.arange(0,30,0.5)
    y=np.arange(0,30,0.5)
    xx,yy=np.meshgrid(x,y)
    z=gaussian(np.c_[xx.ravel(),yy.ravel()],means,sigma2)
    zz=z.reshape(xx.shape)
    plt.plot(X[:,0],X[:,1],'bx')
    contour_levels=[10**h for h in range(-20,0,3)]
    plt.contour(xx,yy,zz,contour_levels)

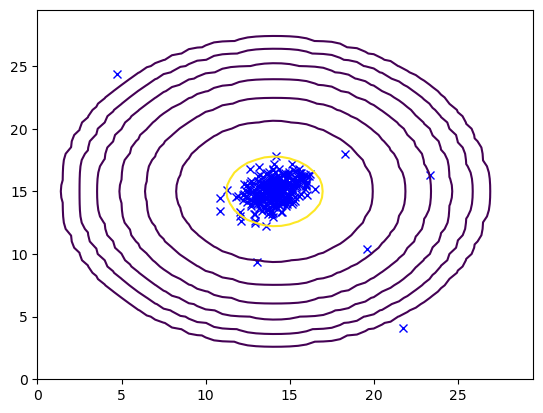

1 2	means,sigma2=estimateGaussian(X,isCovariance=False) plotGaussian(X,means,sigma2)

png

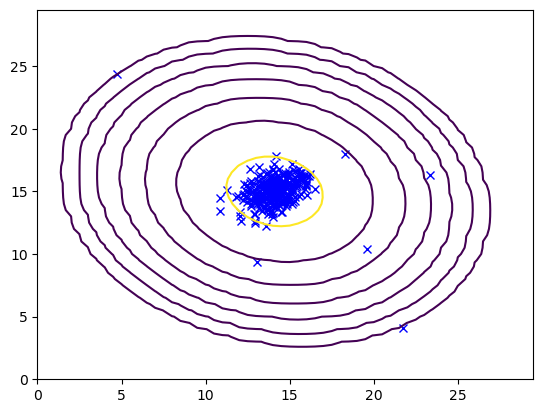

1 2	means,sigma2=estimateGaussian(X,isCovariance=True) plotGaussian(X,means,sigma2)

png

选取最佳的Epsilon

def selectThreshold(yval,p):
    bestEpsilon=0
    bestF1=0
    epsilons=np.linspace(min(p),max(p),1000)
    for e in epsilons:
        p_=p<e
        tp=np.sum((yval==1)&(p_==1))
        fp=np.sum((yval==0)&(p_==1))
        fn=np.sum((yval==1)&(p_==0))
        prec=tp/(tp+fp)if(tp+fp) else 0
        rec=tp/(tp+fn)if(tp+fn) else 0
        F1_e=2*prec*rec/(prec+rec)if(prec+rec) else 0
        if F1_e>bestF1:
            bestF1=F1_e
            bestEpsilon=e
    return bestEpsilon,bestF1

means,sigma2=estimateGaussian(X,isCovariance=True)
pval=gaussian(Xval,means,sigma2)
bestEpsilon,bestF1=selectThreshold(yval,pval)

bestEpsilon,bestF1
(array([9.07484457e-05]), 0.8750000000000001)

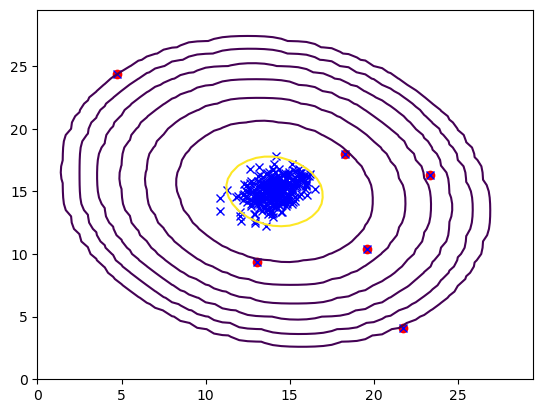

p=gaussian(X,means,sigma2)
anoms=np.array([X[i] for i in range(X.shape[0])if p[i]<bestEpsilon])
plotGaussian(X,means,sigma2)
plt.scatter(anoms[:,0],anoms[:,1],c='r',marker='o')

png

means,sigma2=estimateGaussian(X,isCovariance=False)
pval=gaussian(Xval,means,sigma2)
bestEpsilon,bestF1=selectThreshold(yval,pval)

bestEpsilon,bestF1
(array([8.99985263e-05]), 0.8750000000000001)

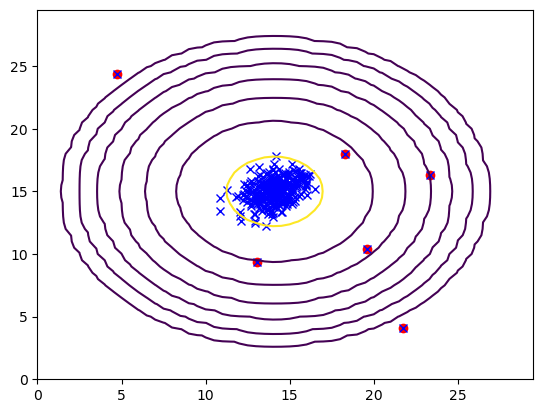

p=gaussian(X,means,sigma2)
anoms=np.array([X[i] for i in range(X.shape[0])if p[i]<bestEpsilon])
plotGaussian(X,means,sigma2)
plt.scatter(anoms[:,0],anoms[:,1],c='r',marker='o')

png

高维情况

可以看出是否协方差对于异常点的估计有影响

mat=sio.loadmat('Anomaly Detection_2.mat')
X2=mat['X']
Xval2,yval2=mat['Xval'],mat['yval']
X2.shape

(1000, 11)

means,sigma2=estimateGaussian(X2,isCovariance=False)
pval=gaussian(Xval2,means,sigma2)
bestEpsilon,bestF1=selectThreshold(yval2,pval)
p=gaussian(X2,means,sigma2)
anoms=[X2[i] for i in range(len(X2)) if p[i]<bestEpsilon]
len(anoms)
117

means,sigma2=estimateGaussian(X2,isCovariance=True)
pval=gaussian(Xval2,means,sigma2)
bestEpsilon,bestF1=selectThreshold(yval2,pval)
p=gaussian(X2,means,sigma2)
anoms=[X2[i] for i in range(len(X2)) if p[i]<bestEpsilon]
len(anoms)
122
